Wired Rain Sensor for 24V/36V AC Sprinkler Controllers, Adjustable Rainfall Setting (1/8"–1") Hardwired Rain Sensor with 21.3ft Cable & Mounting Bracket, Easy Mount to Gutter or Wall

Wired Rain Sensor for Sprinkler SystemsUpgrade your irrigation system with this Wired Rain Sensor, designed to automatically pause watering during rainfall. It features adjustable rainfall sensitivity (1/8"–1"), 180° adjustable bracket, 21.3 ft cable, and is compatible with most 24V AC sprinkler controllersWorking Principle (Mechanical Type)The sensor connects to your sprinkler controller via cable and detects natural rainfall to pause irrigation automatically. Dry Weather: The hygroscopic discs inside the sensor remain dry and compact, keeping the micro switch closed. The controller operates normally, and watering continues as scheduled. During Rainfall: The discs absorb water and expand, causing the micro switch to open. This sends a signal to the controller to pause irrigation, preventing overwatering. After Rain Stops: The discs dry and shrink, allowing the micro switch to close again. The controller then resumes its normal watering program. Electrical SpecificationsThe electrical rating of the switch is 1A, 36VWhen rainfall is below the settings, the switch is in a conducting stateWhen rainfall exceeds the settings, the switch is in a disconnected stateSettings and Adjustmentsa. Turn the rainfall adjustment dial to a required settingb. Connect two wire ends to Common Terminal and Sensor Terminal & nbsp. c. The controller watering programs will be suspended or skipped when rainfall exceeds the set levelPackage includes1 x Wired Rain SensorNote1. Ensure your controller's input circuit is compatible with the sensor's electrical rating. 2. Do not submerge the rain sensor in water. Winding risk may exist, please keep our product away from children

• Automatic Water Saving: Our wired rain sensor saves water and money by automatically pausing your sprinkler system during rainfall. The hygroscopic discs expand when wet, activating a micro switch to stop irrigation, then dry and reset once rain ends, the system automatically resumes watering. With fast response and high sensitivity, it prevents overwatering, ensuring your lawn always receives the right amount of moisture without waste; Ideal for areas with frequent rain or drought restrictions
• Wide Compatibility: This rain sensor for sprinkler system compatible with most standard 24V AC irrigation controllers. The universal 24VAC hardwired connection ensures easy integration into existing systems; Easily replaces old or damaged rain sensors in existing systems, enhancing your current irrigation setup with smarter water management and reliable rain detection
• Easy Installation: The automatic rain sensor comes with an adjustable mounting bracket and corrosion resistant screws for quick and secure installation. The 21.3ft cable provides extended reach for flexible mounting options; Ideal for installation on gutters, fences, walls, or open outdoor areas exposed to natural rainfall. The simple two wire connection allows easy setup even for beginners, making it an effortless upgrade to your irrigation system

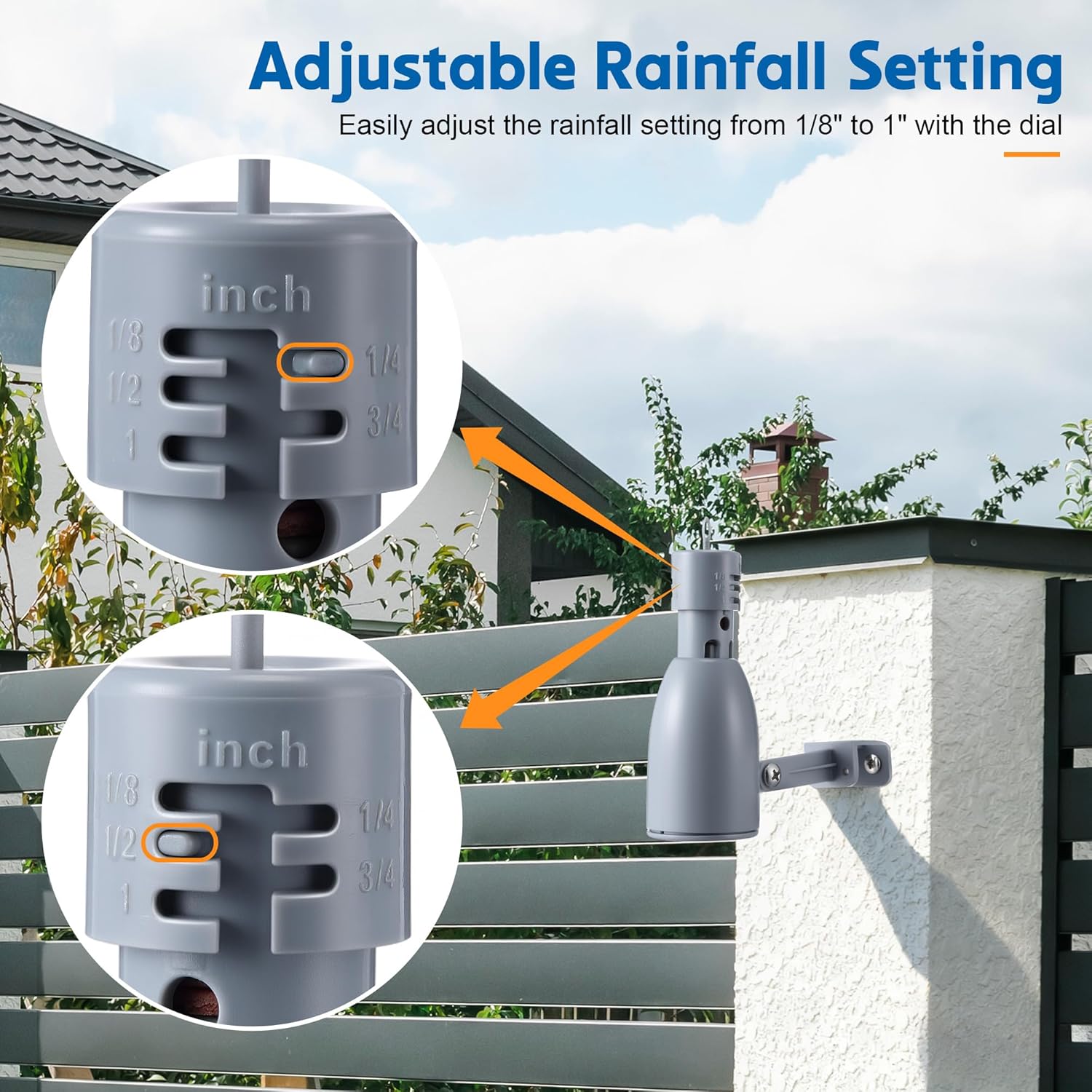

• Adjustable Rainfall Setting: Easily adjust how much rainfall is required before your system pauses watering. The rainfall threshold can be set between 1/8 inch and 1 inch simply by rotating the sensor's adjustment dial. This feature lets you fine tune your watering schedule based on climate conditions, the sprinkler system will shut off once that rainfall amount is reached, maximizing water efficiency and protecting your landscape from overwatering
• 180° Adjustable Mounting Bracket: The included adjustable bracket allows for 180° rotation, ensuring the sensor face is upright and properly positioned for accurate rainfall detection. The universal quick clip design makes it easy to attach the sensor to gutters, roof edges, or sidewalls. Even when installed on angled surfaces, the bracket can be adjusted to keep the sensor level; Guaranteeing reliable performance and accurate measurement in all weather conditions
